I wanted to delve into re-creating my version of BMW’s software development environment for 10,000+ Software Developers using BMW Software Factory; *an internal DevOps platform and developer toolchain used by the BMW Group to manage software development for its regional technology hubs. Keep in mind this setup is for one region but realistically you’ll have to run smaller setups for several regions across the world. Let’s begin. Note: All Code (Dockerfile, YAML and Terraform) has NOT been tested!
Docker Integration
There’s (2) ways to do this:
Dockerfile
FROM debian:bookworm-slim
# Set environment variables for the BMW Software Factory mock app
ENV APP_NAME="BMW-Software-Factory"
ENV APP_HOME="/opt/bmw-factory"
# Install essential build tools and dependencies
RUN apt-get update && apt-get install -y \
curl \
git \
build-essential \
&& rm -rf /var/lib/apt/lists/*
# Create application directory
WORKDIR $APP_HOME
# Copy your mock application source code
COPY . .
# Set a default command to run your mock app
CMD ["/bin/bash"]
- Run the following command using Colima (MacOS) or Moby (Windows): docker build -t BMW_Software_Factory .

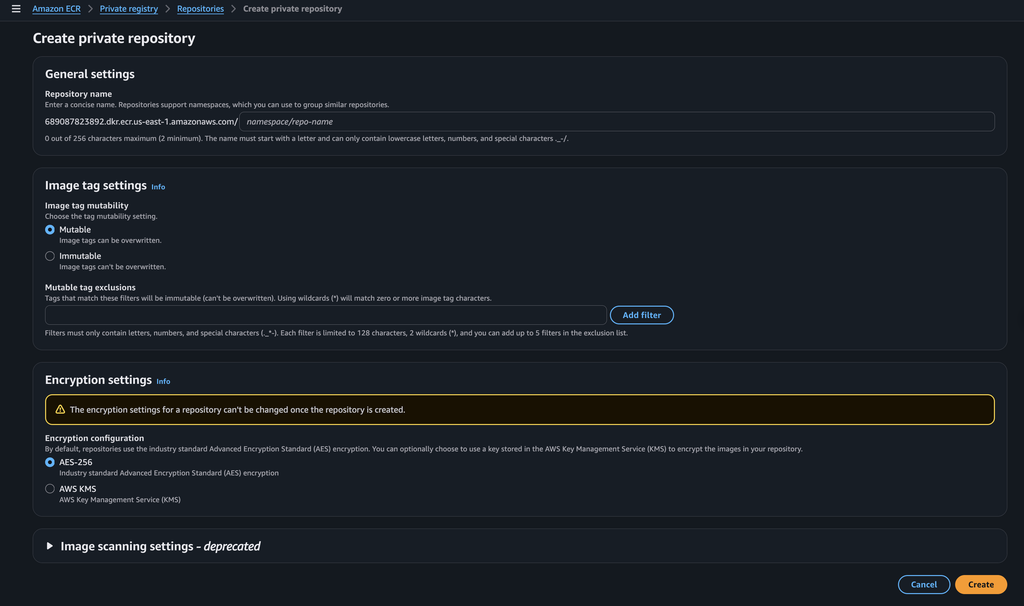

- Connect to AWS CLI and push the image to AWS ECR.
Create the Cloud Infrastructure

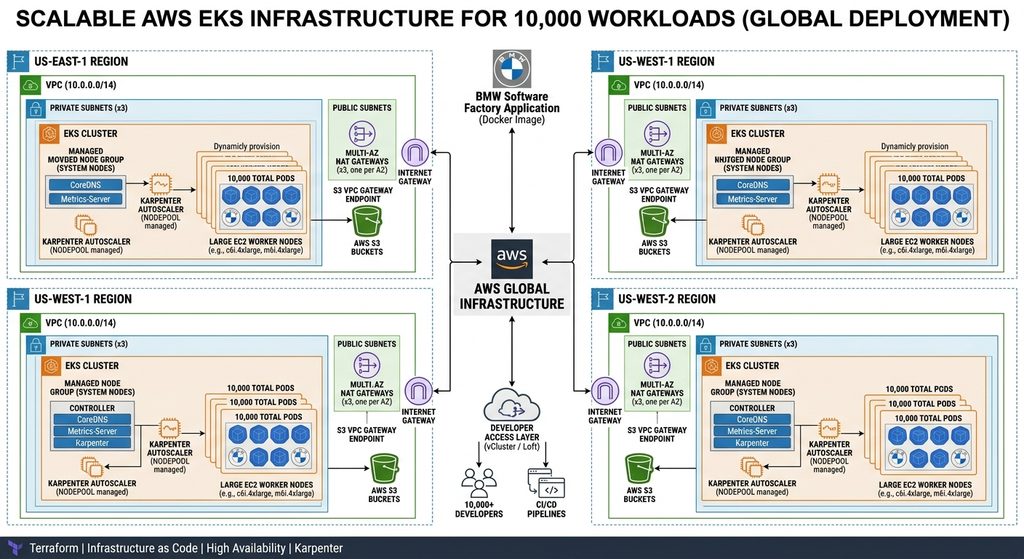

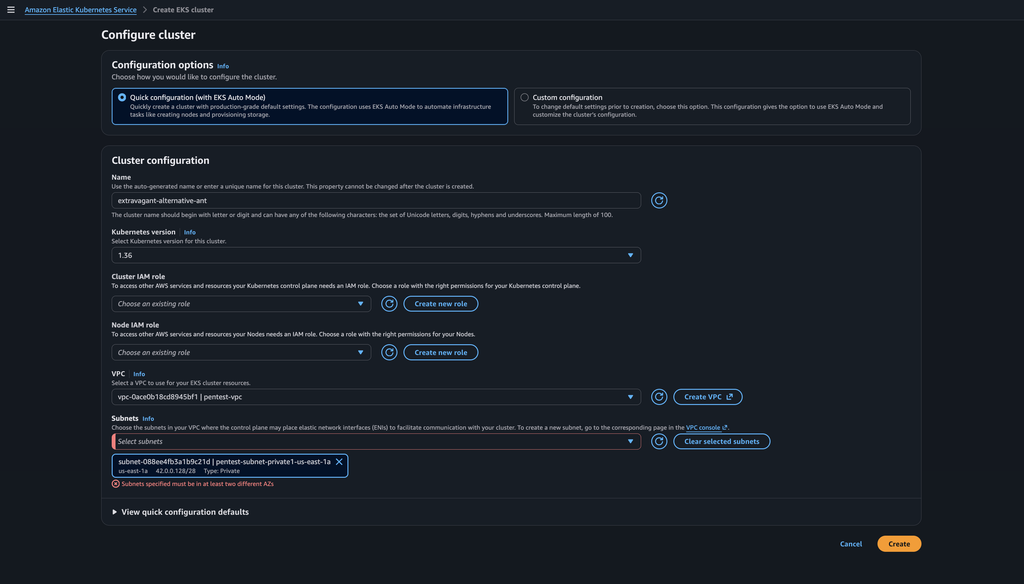

Next, using Terraform, provision (create) a VPC and EKS cluster. Note: Rather than 10,000 nodes for one Region, create several .tf files for more than one region.
terraform {
required_version = ">= 1.3.0"
required_providers {
aws = {
source = "hashicorp/aws"
version = "~> 5.0"
}
kubernetes = {
source = "hashicorp/kubernetes"
version = "~> 2.20"
}
helm = {
source = "hashicorp/helm"
version = "~> 2.10"
}
}
}
provider "aws" {
region = var.aws_region
}
# --- Variables ---
variable "aws_region" {
description = "AWS Region to deploy resources"
type = string
default = "us-east-1"
}
variable "cluster_name" {
description = "Name of the EKS Cluster"
type = string
default = "my-highscale-cluster"
}
variable "container_image" {
description = "Container image for dev workloads"
type = string
default = "nginx:alpine" # Replace with your registry image
}
variable "replica_count" {
description = "Number of container replicas to launch"
type = number
default = 10000
}
# --- Data Sources ---
data "aws_availability_zones" "available" {
state = "available"
}
# --- VPC Module ---
# /14 CIDR + Multi-AZ NAT Gateways to prevent network bottlenecks and SNAT exhaustion
module "vpc" {
source = "terraform-aws-modules/vpc/aws"
version = "~> 5.0"
name = "${var.cluster_name}-vpc"
cidr = "10.0.0.0/14"
azs = slice(data.aws_availability_zones.available.names, 0, 3)
private_subnets = ["10.0.0.0/18", "10.0.64.0/18", "10.0.128.0/18"]
public_subnets = ["10.0.192.0/24", "10.0.193.0/24", "10.0.194.0/24"]
enable_nat_gateway = true
single_nat_gateway = false
one_nat_gateway_per_az = true # Dedicated outbound bandwidth per AZ
enable_dns_hostnames = true
public_subnet_tags = {
"kubernetes.io/role/elb" = "1"
}
private_subnet_tags = {
"kubernetes.io/role/internal-elb" = "1"
"karpenter.sh/discovery" = var.cluster_name
}
}
# --- EKS Module ---
module "eks" {
source = "terraform-aws-modules/eks/aws"
version = "~> 20.0"
cluster_name = var.cluster_name
cluster_version = "1.30"
cluster_endpoint_public_access = true
enable_cluster_creator_admin_permissions = true
vpc_id = module.vpc.vpc_id
subnet_ids = module.vpc.private_subnets
# Scaled System Nodes to ensure CoreDNS and Karpenter controllers don't OOM
eks_managed_node_groups = {
system_nodes = {
min_size = 3
max_size = 10
desired_size = 3
instance_types = ["m6i.2xlarge"] # 8 vCPU, 32GB RAM per node
capacity_type = "ON_DEMAND"
labels = {
"workload-type" = "system"
}
}
}
tags = {
Environment = "production"
ScaleTarget = "10k-workloads"
Terraform = "true"
}
}
# --- Helm & Kubernetes Providers ---
data "aws_eks_cluster_auth" "cluster" {
name = module.eks.cluster_name
}
provider "kubernetes" {
host = module.eks.cluster_endpoint
cluster_ca_certificate = base64decode(module.eks.cluster_certificate_authority_data)
token = data.aws_eks_cluster_auth.cluster.token
}
provider "helm" {
kubernetes {
host = module.eks.cluster_endpoint
cluster_ca_certificate = base64decode(module.eks.cluster_certificate_authority_data)
token = data.aws_eks_cluster_auth.cluster.token
}
}
# --- Karpenter Autoscaler Installation ---
# Karpenter efficiently bin-packs 10,000 workloads into scalable EC2 instances
resource "helm_release" "karpenter" {
namespace = "karpenter"
create_namespace = true
name = "karpenter"
repository = "oci://public.ecr.aws/karpenter"
chart = "karpenter"
version = "0.37.0"
set {
name = "settings.clusterName"
value = module.eks.cluster_name
}
set {
name = "settings.clusterEndpoint"
value = module.eks.cluster_endpoint
}
depends_on = [module.eks]
}
# --- Workload Deployment ---
resource "kubernetes_namespace" "workload" {
metadata {
name = "workload"
}
}
resource "kubernetes_deployment" "large_scale_app" {
metadata {
name = "container-app"
namespace = kubernetes_namespace.workload.metadata[0].name
}
spec {
replicas = var.replica_count
selector {
match_labels = {
app = "container-app"
}
}
template {
metadata {
labels = {
app = "container-app"
}
}
spec {
affinity {
pod_anti_affinity {
preferred_during_scheduling_ignored_during_execution {
weight = 100
pod_affinity_term {
label_selector {
match_expressions {
key = "app"
operator = "In"
values = ["container-app"]
}
}
topology_key = "kubernetes.io/hostname"
}
}
}
}
container {
image = var.container_image
name = "app-container"
resources {
limits = {
cpu = "250m"
memory = "512Mi"
}
requests = {
cpu = "250m"
memory = "512Mi"
}
}
}
}
}
}
depends_on = [helm_release.karpenter]
}
# Protects cluster API from cascade failure during rolling restarts
resource "kubernetes_pod_disruption_budget" "app_pdb" {
metadata {
name = "container-app-pdb"
namespace = kubernetes_namespace.workload.metadata[0].name
}
spec {
max_unavailable = "10%"
selector {
match_labels = {
app = "container-app"
}
}
}
}
# --- Outputs ---
output "cluster_name" {
description = "EKS Cluster Name"
value = module.eks.cluster_name
}
output "cluster_endpoint" {
description = "Endpoint for EKS control plane"
value = module.eks.cluster_endpoint
}CI/CD Pipeline
Next, add the following deployment.yml file to the github repository:
// Deployment.yml
name: Build, Push to ECR, and Deploy to EKS
on:
push:
branches:
- main
env:
AWS_REGION: us-east-1 # Update to your AWS region
ECR_REPOSITORY: my-app-repo # Update to your ECR repository name
permissions:
id-token: write # Required for requesting the OIDC JWT token
contents: read # Required to checkout the repository
jobs:
deploy:
name: Build & Deploy
runs-on: ubuntu-latest
steps:
- name: Checkout Code
uses: actions/checkout@v4
- name: Configure AWS Credentials (via OIDC)
uses: aws-actions/configure-aws-credentials@v4
with:
role-to-assume: ${{ secrets.AWS_ROLE_ARN }}
aws-region: ${{ env.AWS_REGION }}
- name: Log in to Amazon ECR
id: login-ecr
uses: aws-actions/amazon-ecr-login@v2
- name: Build, Tag, and Push Image to ECR
id: build-image
env:
ECR_REGISTRY: ${{ steps.login-ecr.outputs.registry }}
IMAGE_TAG: ${{ github.sha }}
run: |
# Build container image
docker build -t ECRREGISTRY/ECR_REPOSITORY:$IMAGE_TAG .
docker tag ECRREGISTRY/ECR_REPOSITORY:$IMAGE_TAG ECRREGISTRY/ECR_REPOSITORY:latest
# Push both specific commit tag and 'latest' to ECR
docker push ECRREGISTRY/ECR_REPOSITORY:$IMAGE_TAG
docker push ECRREGISTRY/ECR_REPOSITORY:latest
# Output the image URI for downstream steps
echo "image=ECRREGISTRY/ECR_REPOSITORY:$IMAGE_TAG" >> $GITHUB_OUTPUT
- name: Update Kubeconfig for EKS
run: |
aws eks update-kubeconfig --region ${{ env.AWS_REGION }} --name ${{ secrets.EKS_CLUSTER_NAME }}
- name: Deploy to EKS
env:
IMAGE_URI: ${{ steps.build-image.outputs.image }}
run: |
# Substitute the dynamic image tag into the deployment manifest and apply
sed -i "s|image: .*|image: $IMAGE_URI|g" k8s/deployment.yaml
kubectl apply -f k8s/
# Verify rollout success (fails job if deployment gets stuck)
kubectl rollout status deployment/my-app-deployment --timeout=180sAccessing the Nodes
Once the cluster and nodes have the ECR image installed, Developer’s can access there assigned node from the command line:
kubectl exec -it <pod-name> — /bin/sh
Save your Work
By default, the node’s are stateless and will delete all work performed unless action is taken to save the state of the container as an image or into a storage. To save the state of the node (Docker Container), you can do this in one of two ways. Create a YAML file that saves the state into an EBS volume:
//save_node.yml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: app-storage-pvc
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 10Gi
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: my-app
spec:
template:
spec:
containers:
- name: my-app
image: <your-ecr-uri>
volumeMounts:
- mountPath: /app/data # Data written here persists on AWS EBS
name: storage
volumes:
- name: storage
persistentVolumeClaim:
claimName: app-storage-pvcAlternatively, Software Developer’s can create a copy of the running container which serves as a local snapshot or new image to be started the next workday:
docker commit <pod-name> BMW_Software_Factory:v1WARNING: Do NOT mistake the new image as one generated from the original code of BMW Software Factory. This new image should NOT be pushed back to ECR. IAM permissions for pushing and pulling to ECR should be limited to DevOps / Solutions Architect Team members for AWS best practices.
